SPI-CAN Breakout

SPI-CAN Breakout

$24.00 CAD
$24.00 CAD
Sale Sold out
Shipping calculated at checkout.
Pre-Soldered Connecters Add-On

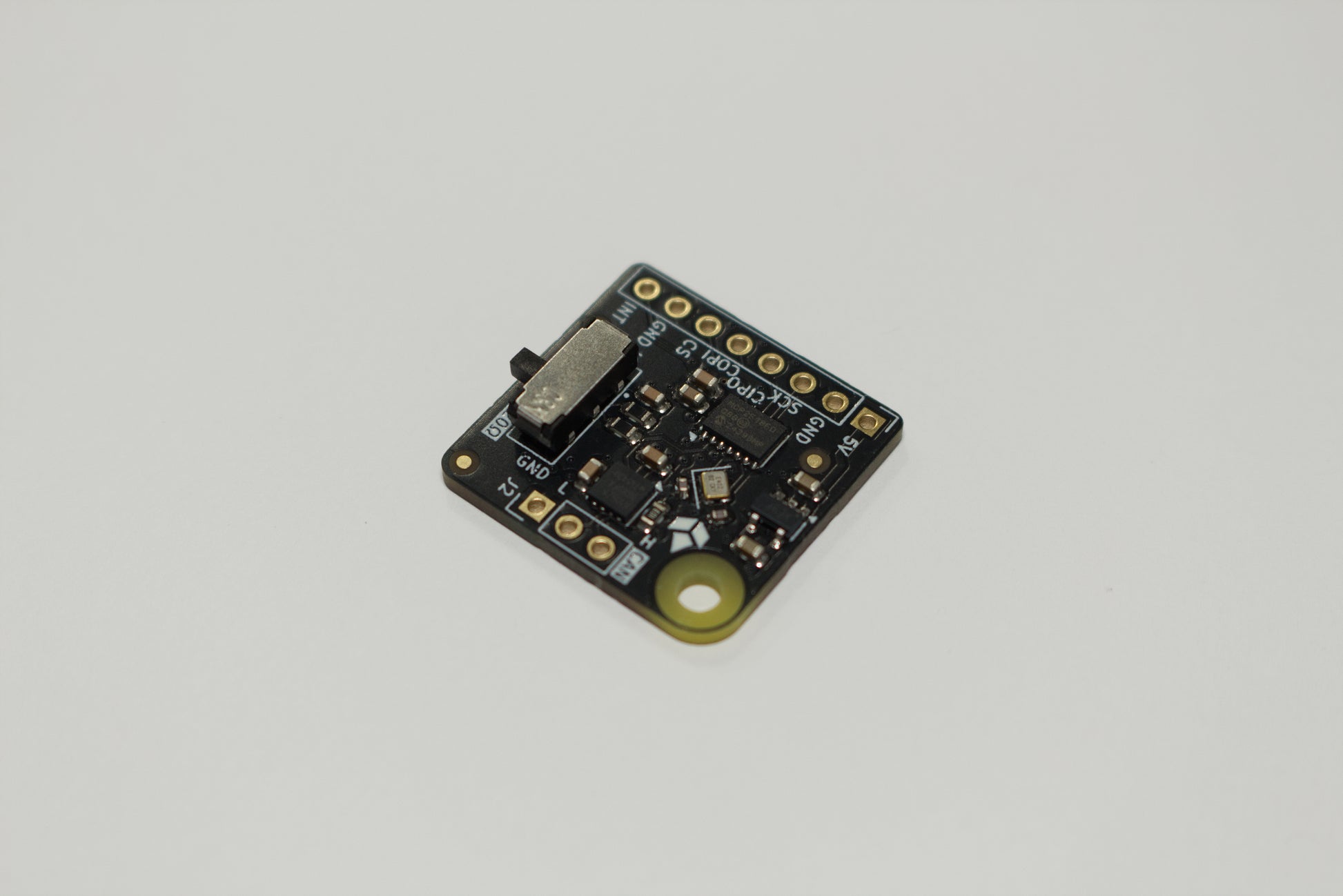

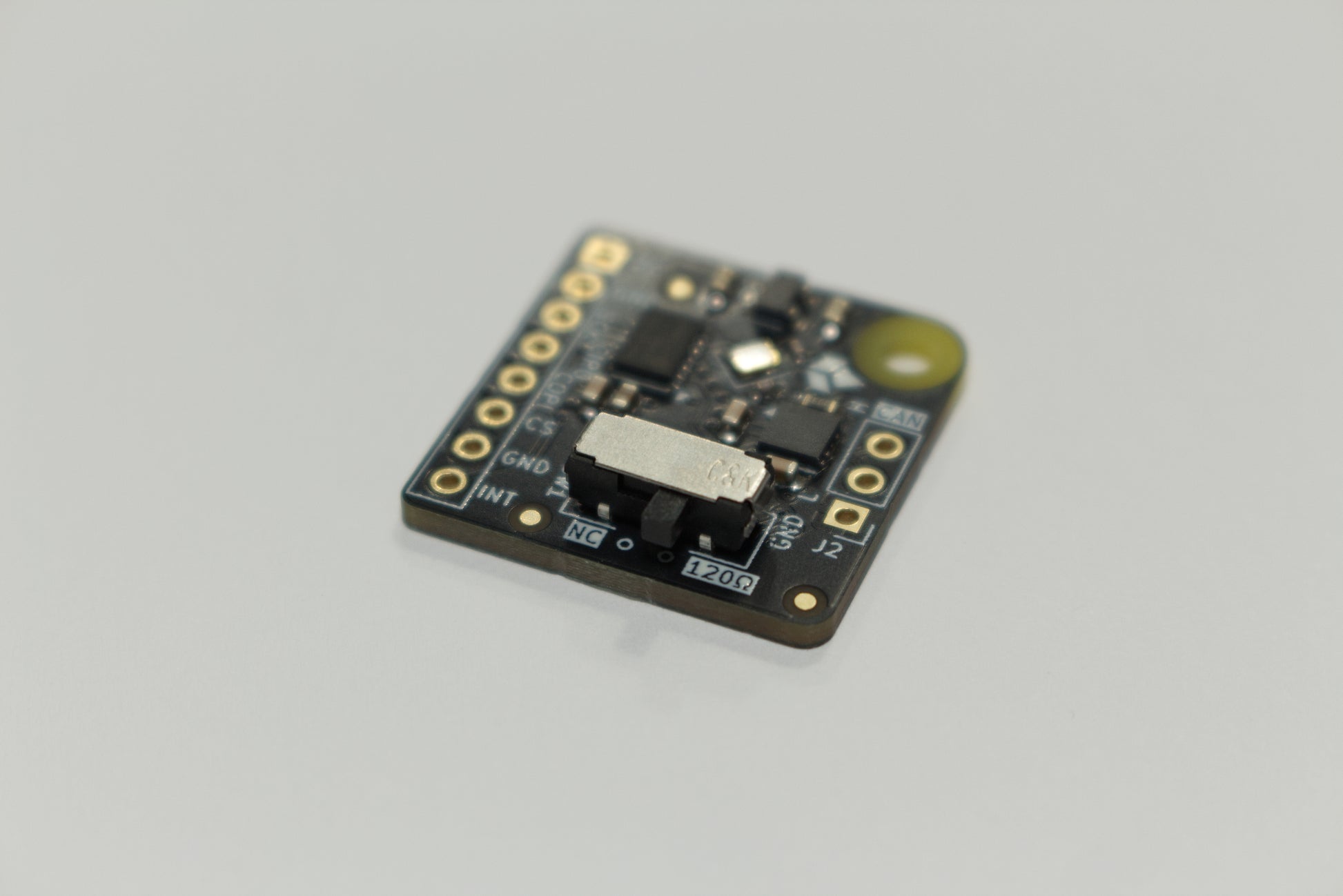

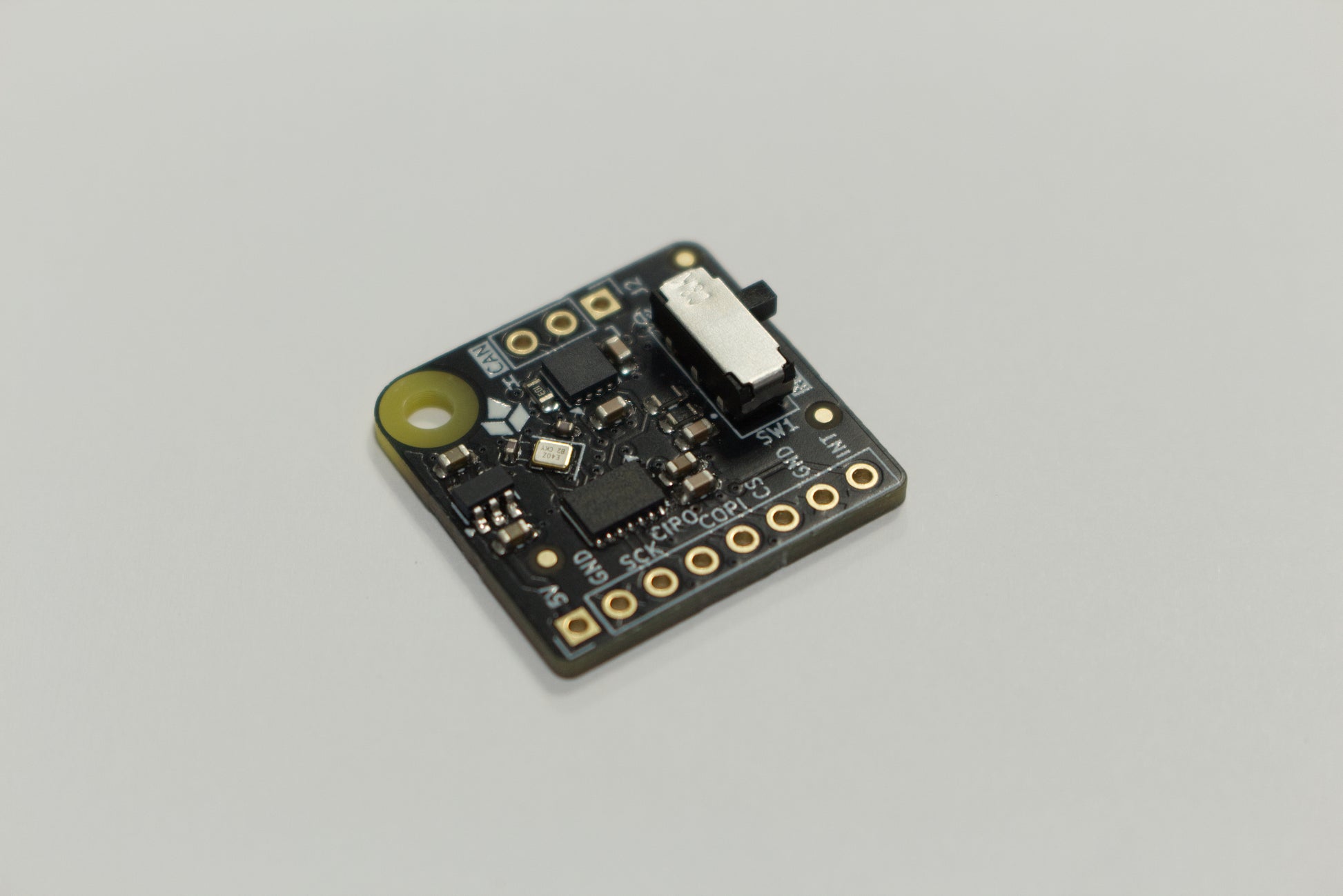

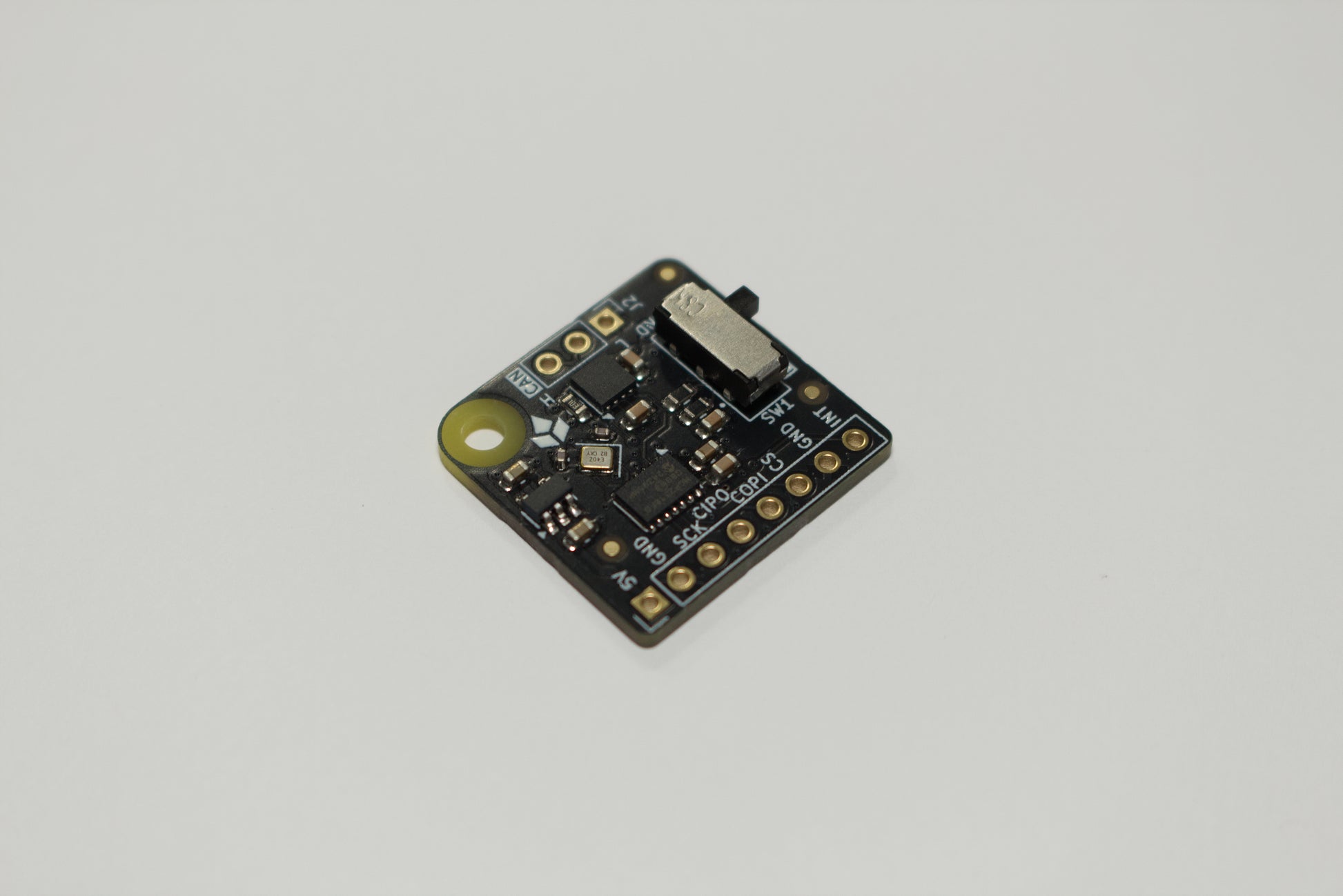

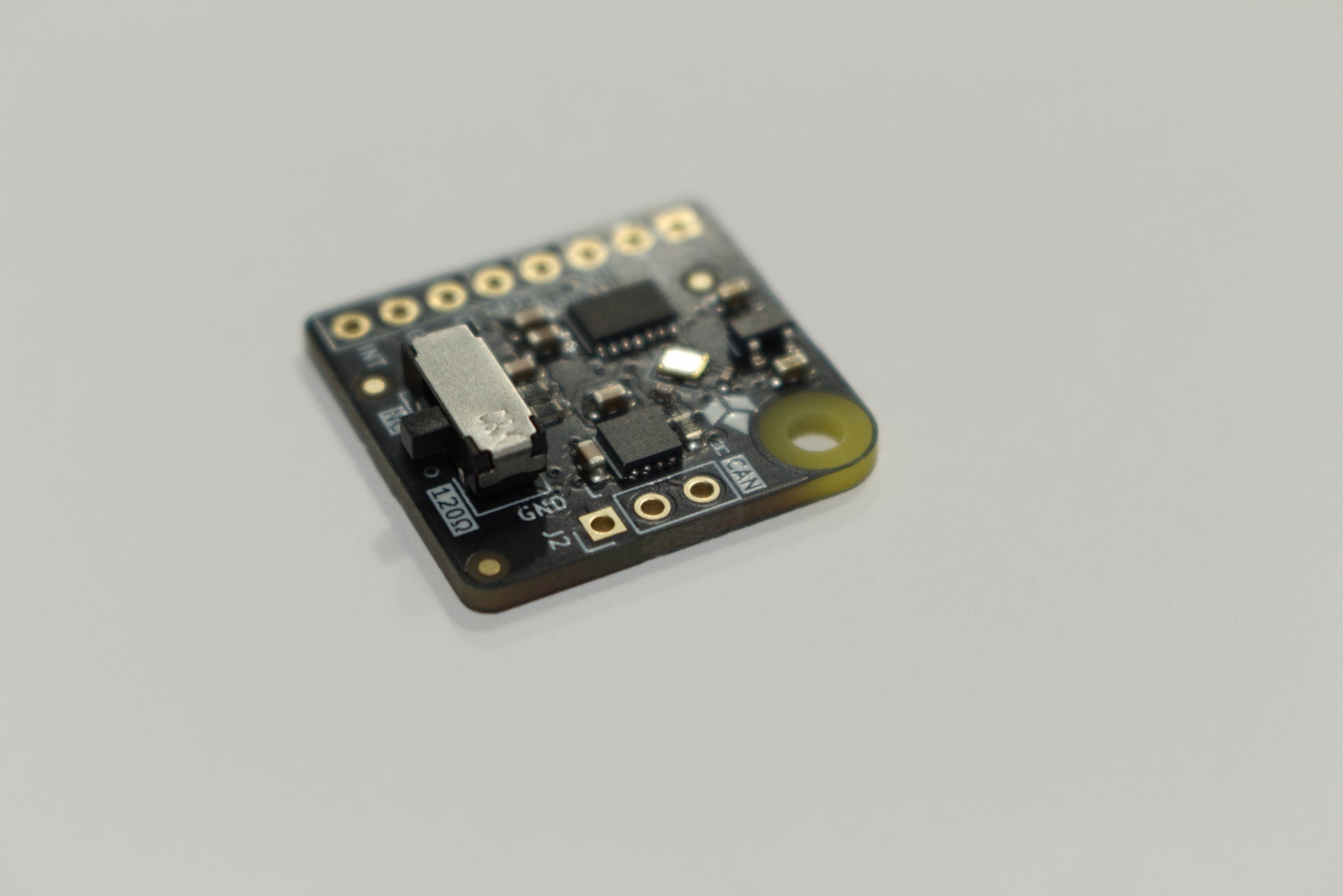

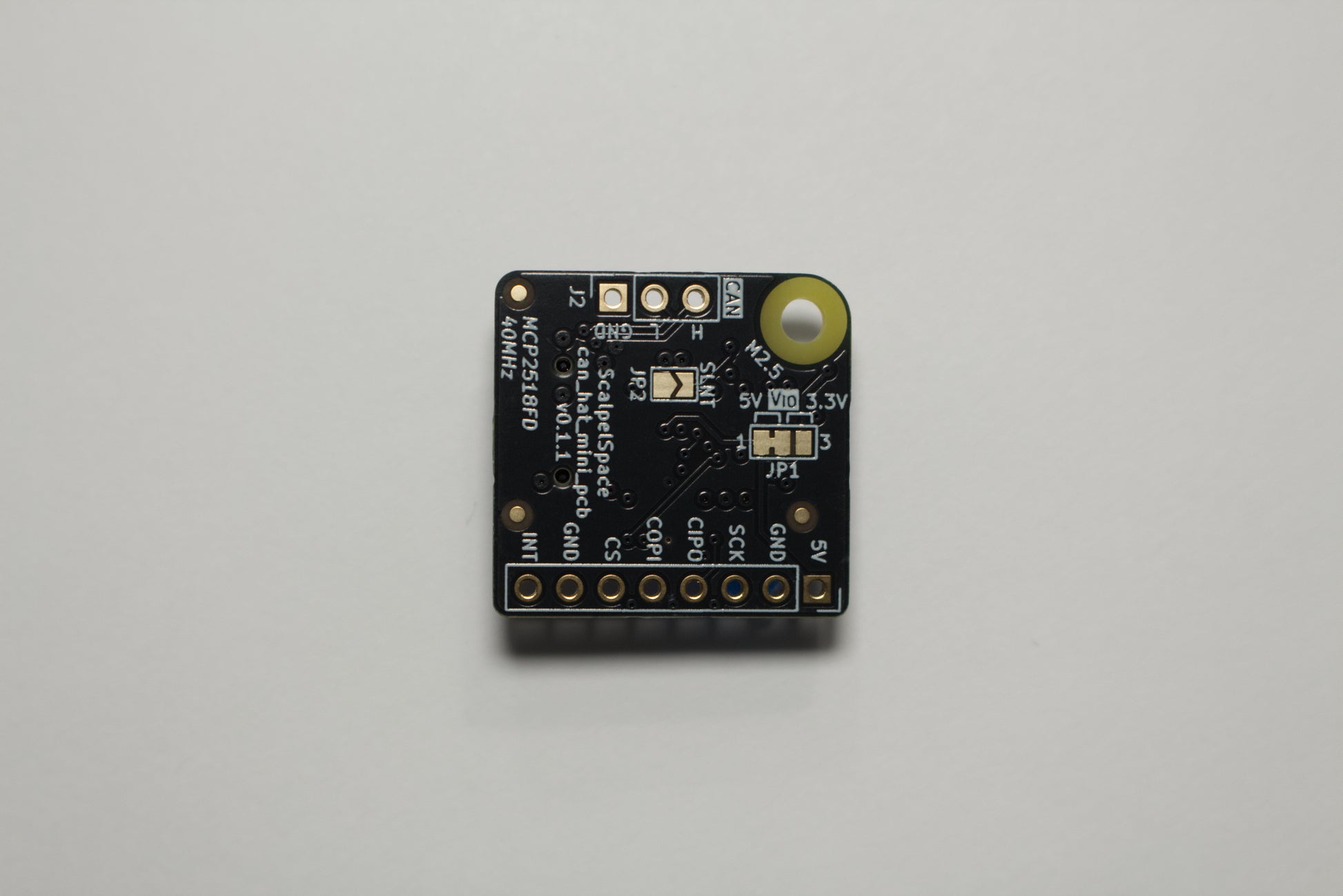

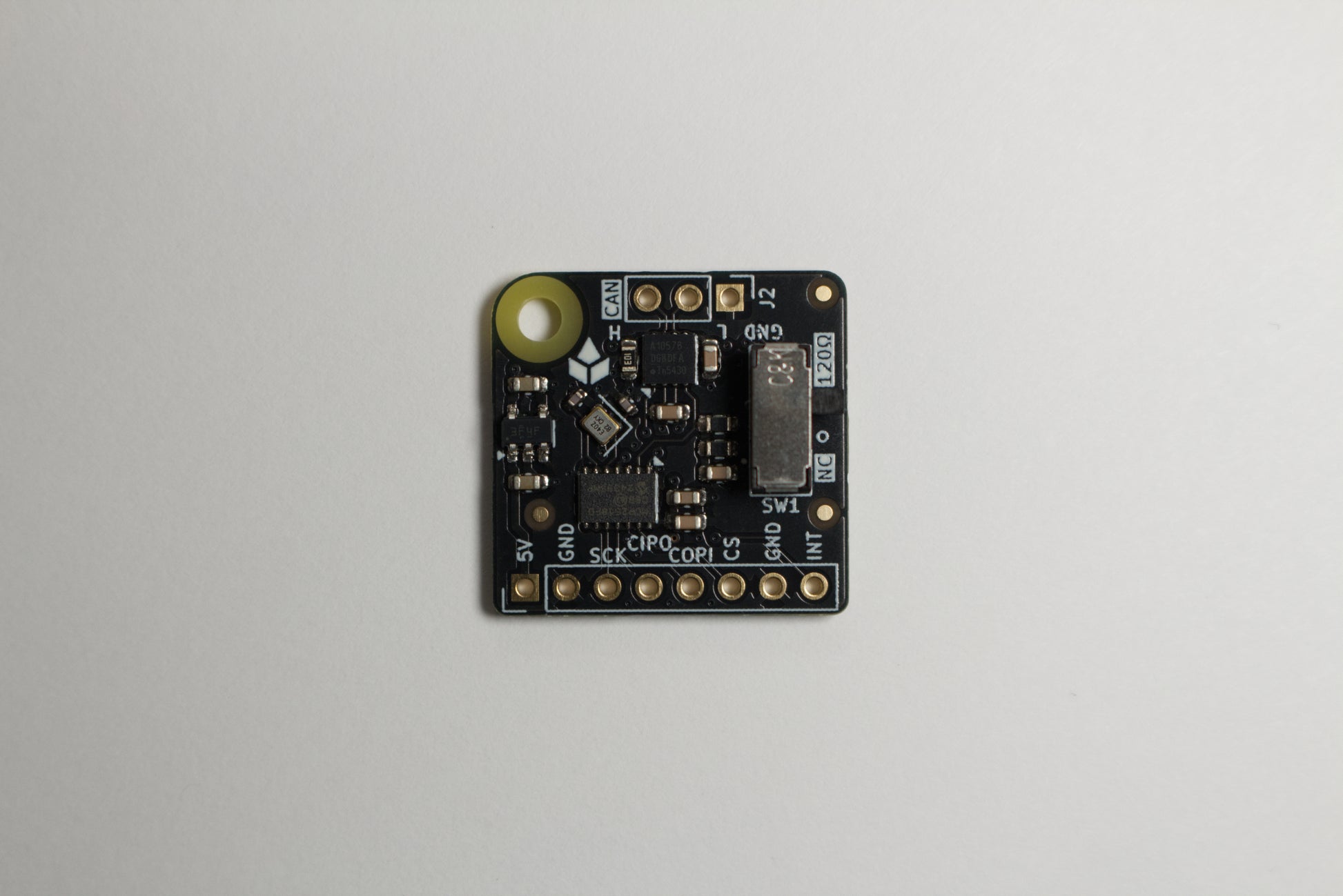

A small-footprint, breadboard-friendly breakout board that bridges an SPI host to a CAN bus. It exposes a standard SPI interface on one side and a CAN transceiver on the other, letting any microcontroller with SPI talk CAN without an integrated controller.

Key features:

  • Miniature breadboard-compatible footprint for quick prototyping.
  • SPI host interface for Classic CAN and CAN FD via the MCP2518FD controller.
  • Switch selectable bus termination (split 2x 60 Ohm + centre-tap capacitor).
  • Jumper selectable 5 V or 3.3 V logic level for the host interface.
  • Jumper selectable silent mode (listen-only) for bus monitoring.
  • 1x M2.5 mounting hole.

Note: Product may slightly differ from photos.

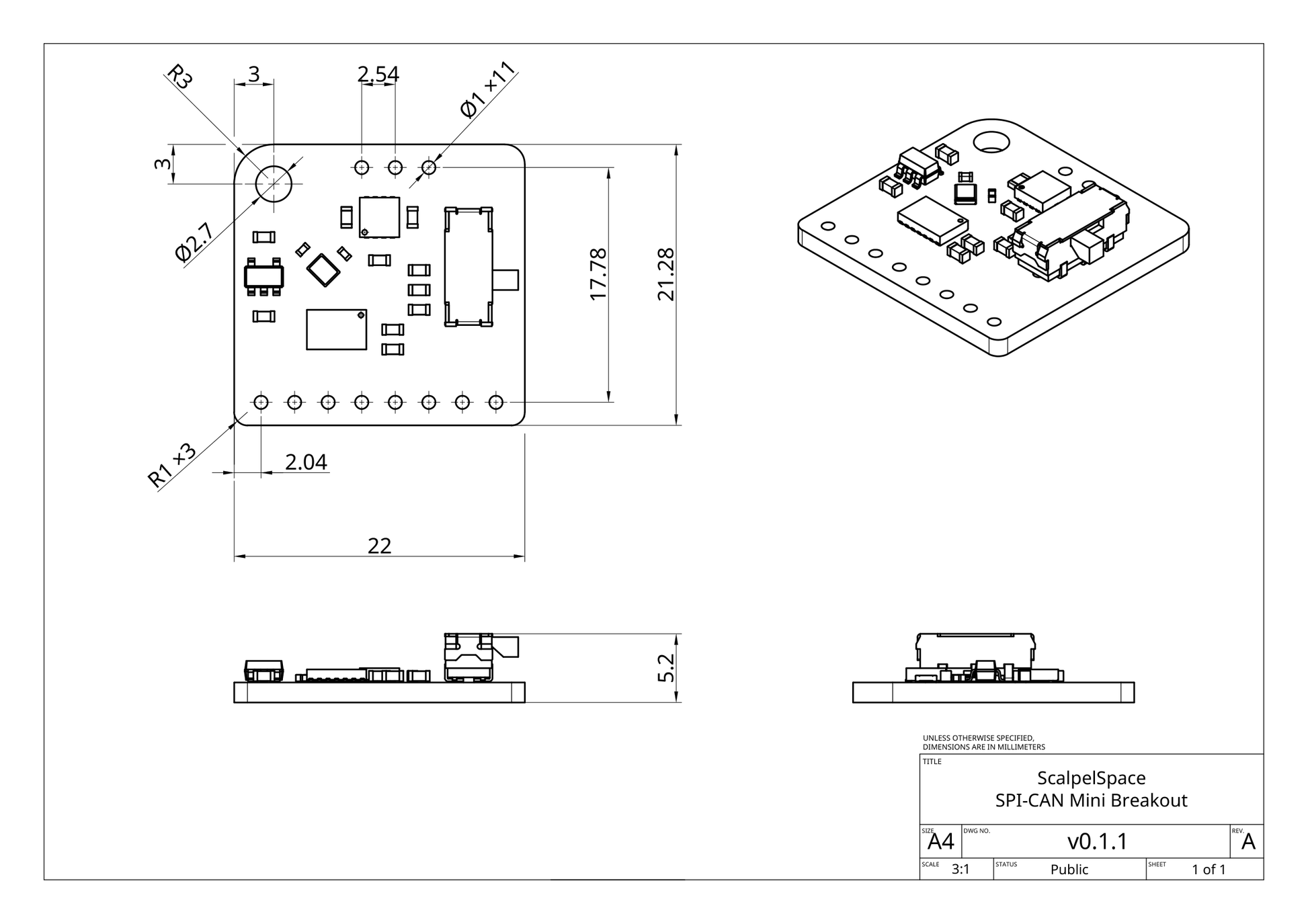

Docs | Schematics | 3D Model

View full details

Details

Intended Use: Non-Consumer, Engineering Tool

This product is designed for non-consumer use. It is intended as an engineering tool for testing and research.

Technical Documentation

Technical documentation can be found on a product's respective github.io website, please see the product description.

GitHub ScalpelSpace Technical Documentation Page: docs.scalpelspace.com.

When Will My Order Ship?

Orders are prepared, packaged and shipped within 3 business days. Shipping time estimates can be found at checkout.
